Drilling & Pile Driver

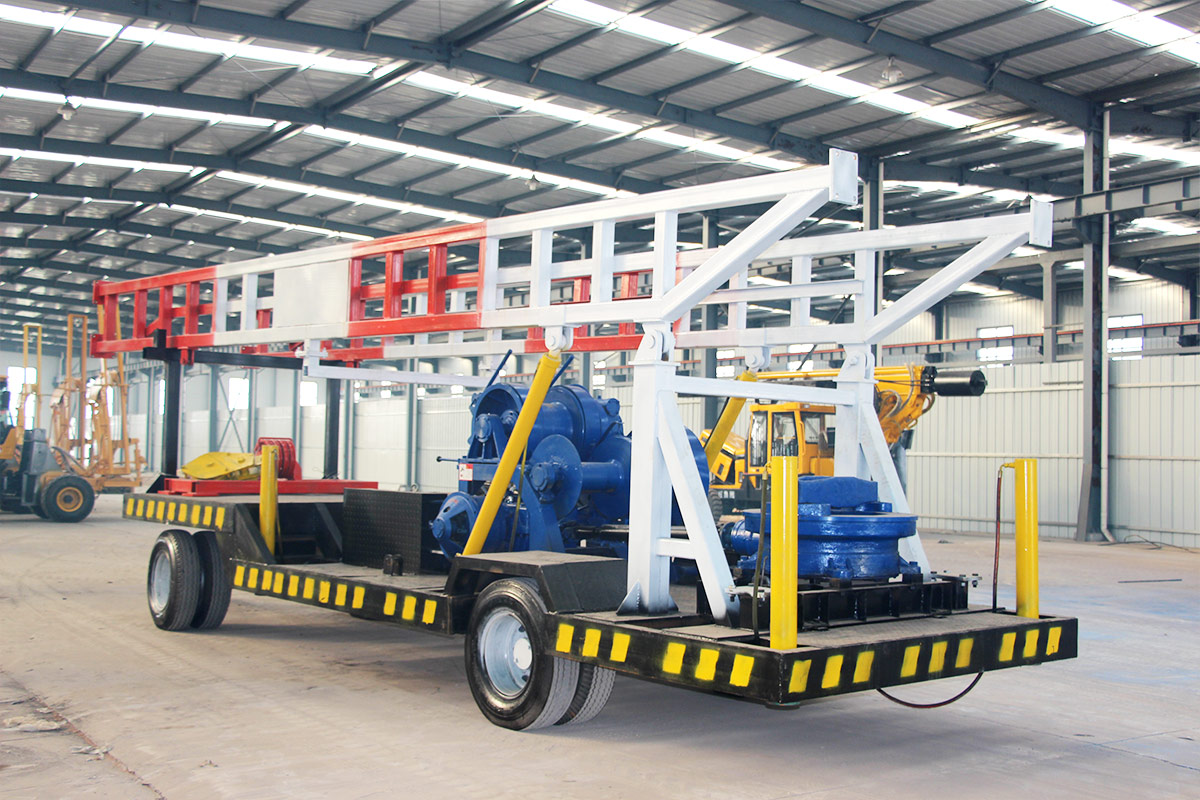

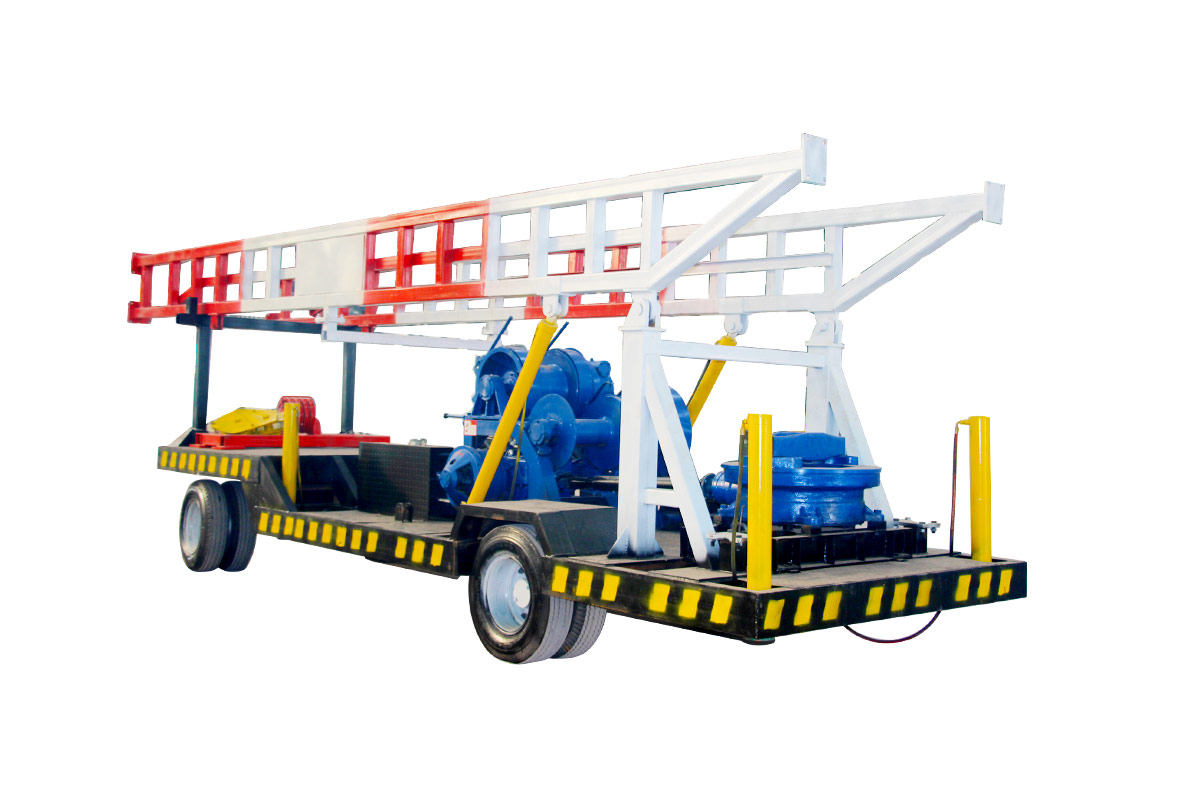

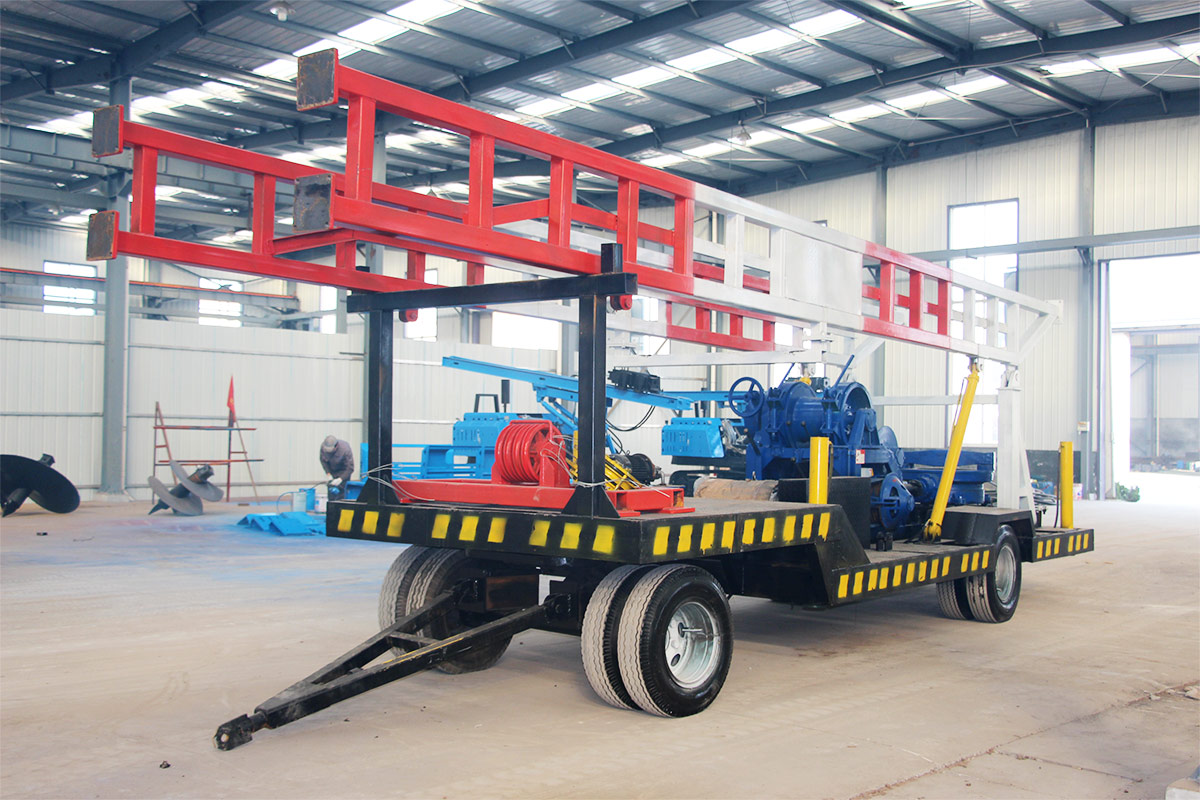

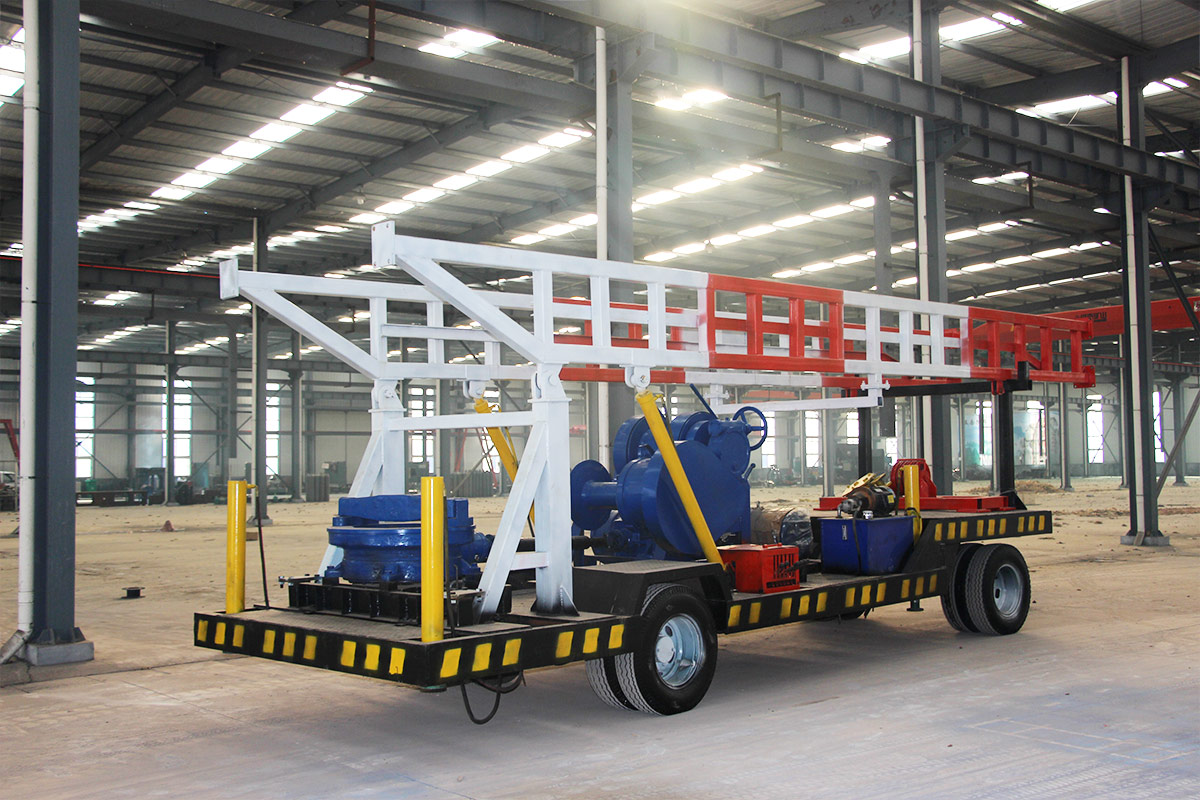

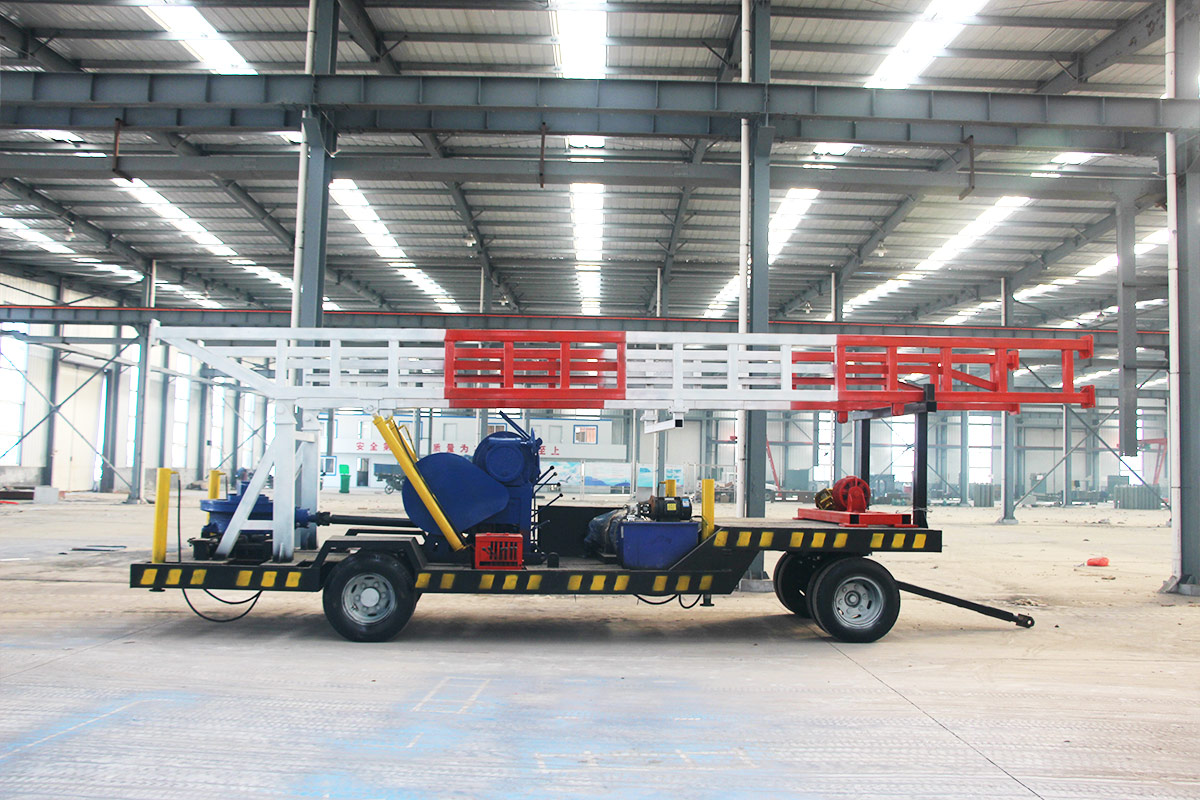

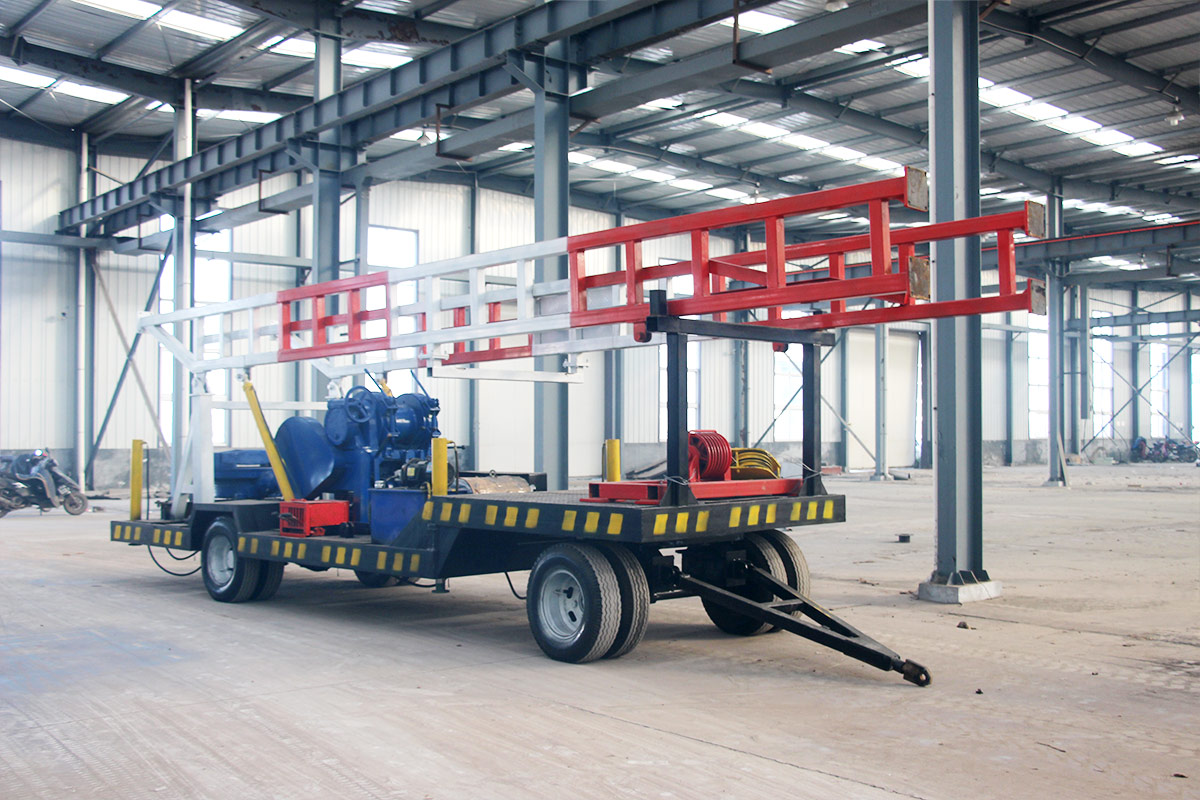

SPJ300T Mill Drilling Rig

Factory Direct
Training on Arrival
One-year warranty

Drill Diameter: 500-1500mm
Drill Depth: 300m
Drill Mast: 8.6m

The drill machine is bulk type rotary machine, Main usage use for fine particle geology, and normal is soft rock geology

Main Application

Exploration geology

For agricultural irrigation, industrial water

Underground Tunnel. Bridge, engineering drill and so on.

ModelSPJ300T
Drill diameterΦ500mm-1500mmDrill depth300m
Maximum output torque18KN/mDriver drill rod108mm×108mm×4000mm
Drill rodφ89mm×4200mm, φ127×φ108×4200mmmain winch lift30KN
Auxiliary winch20KNSpindle inner diameter500mm
Spindle revolving speed40, 70, 128r/minDrill Mast vertical height8.6m
Weight6.5tDimension8400mm×2050mm×8000mm

Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.
