Hengwang construction machinery products mainly include excavator, road roller, crawler dumper, forklift, cranes, self-loading concrete mixer trucks and backhoe loaders, etc., which are widely used in various construction sites.
1. The slewing center is equipped with a touch-type electric disc, which can rotate 360 degrees infinitely.
2. Boom telescopic limit marking and automatic stop report, limit switch three insurance.
3. Hydraulic double-section outriggers, extra-large outrigger span, larger working range and safer. The outrigger cylinder is ejected with small clearance.
4. U-shaped section of the arm body, anti-twist design, more uniform force, better telescopic guidance, more stable telescopic.

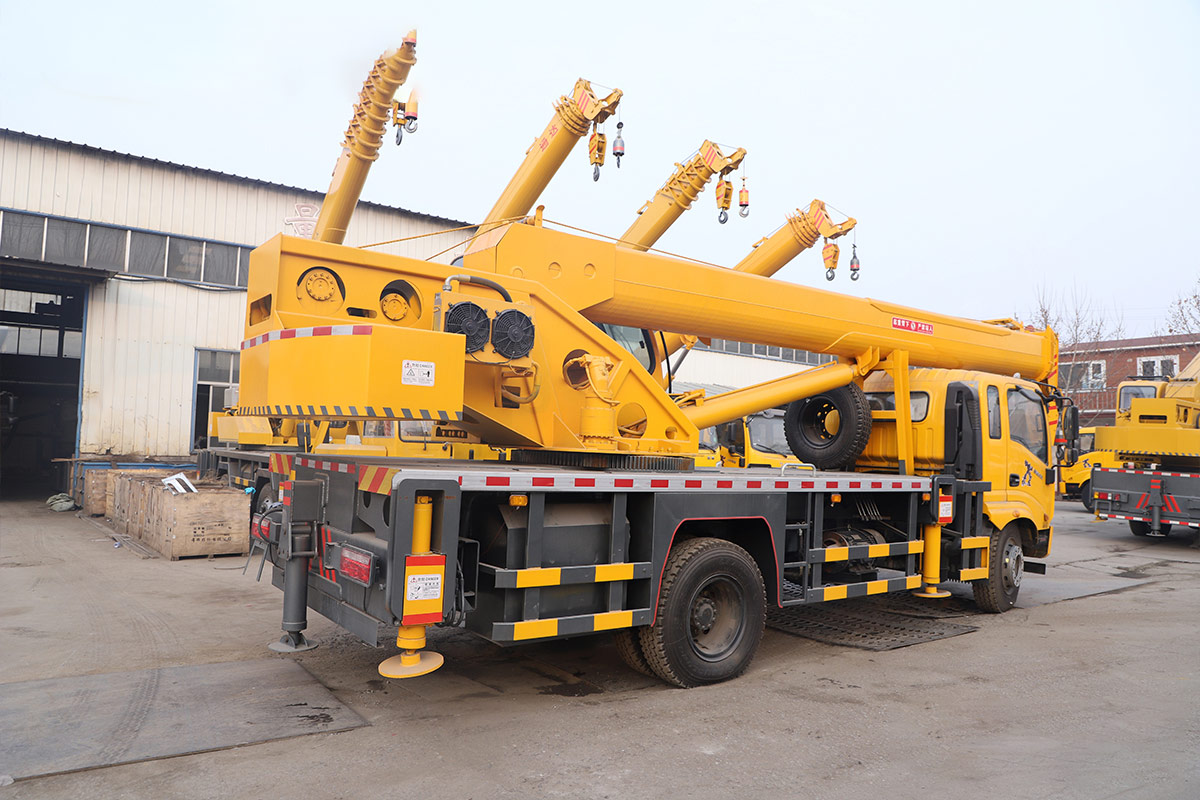

| Model | HWTJ16T |
| Chassis models | TANGJUN4500 |
| Max. loading capacity | 16000kg |
| Crane jib U type | 8m*5 section (rope inside) |
| Max. lifting height | 36.6m |
| Outrigger span (mm) | 6500*5400 |
| Overall Dimensions | 11030*2500*3440 |
| Motor Power | 15kw |
| Lifting speed | Three pumps combined |
| Swing speed | 0-3rap |
| Engine model | YCS0400-48 |
| Power | 147kw200hp |
| Tire | 10.00-R20 |
| Reducer model | Plunger planetary reducer |
| Steering machanism | Hydraulic Power Steering |
| Braking System | Air brake |
| Gearbox | Faust 8-speed gearbox |
| Weight | 18000kg |
| Cab | XCMG Cab |
| Emission Standards | China Ⅵ |
| Wheelbase | 4500 |
| Main hoisting mechanism | 16t Inclined shaft winch |
| Auxiliary hoisting mechanism | 12t Inclined shaft winch |
| Driving speed | 85km/h |
Quote now for the best price.
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
Fill in the form to get the latest product parameters and the lowest price.
Simply complete the form below and a Hengwang product expert will contact you shortly.
