Hengwang construction machinery products mainly include excavator, road roller, crawler dumper, forklift, cranes, self-loading concrete mixer trucks and backhoe loaders, etc., which are widely used in various construction sites.
Driving/Riding Environment
● The control console and the driver seat adopt integral rotary structure to promote the operating vision, with the rotating range at 90° in both leftward and rightward directions.
● The application of advanced CAN bus technology enables the machine monitoring system to read out the malfunction information more accurately and clearly, in order to shorten the malfunction judgment time and safeguard the operating progress.
● The machine adopts three-stage shock-absorbing and proprietary sealing mechanisms to achieve low vibration and low noise.
● The full-hydraulic drive and three-speed stepless speed regulation guarantee simple operations.
Working performance
● With high vibrating frequency (67Hz), it's the machine of highest compacting efficiency.
● The electrohydraulic control technology adopts the internally supplied parts and the advanced match design and sophisticated control technology guarantee reasonable vibration start and stop times and good compacting uniformity.

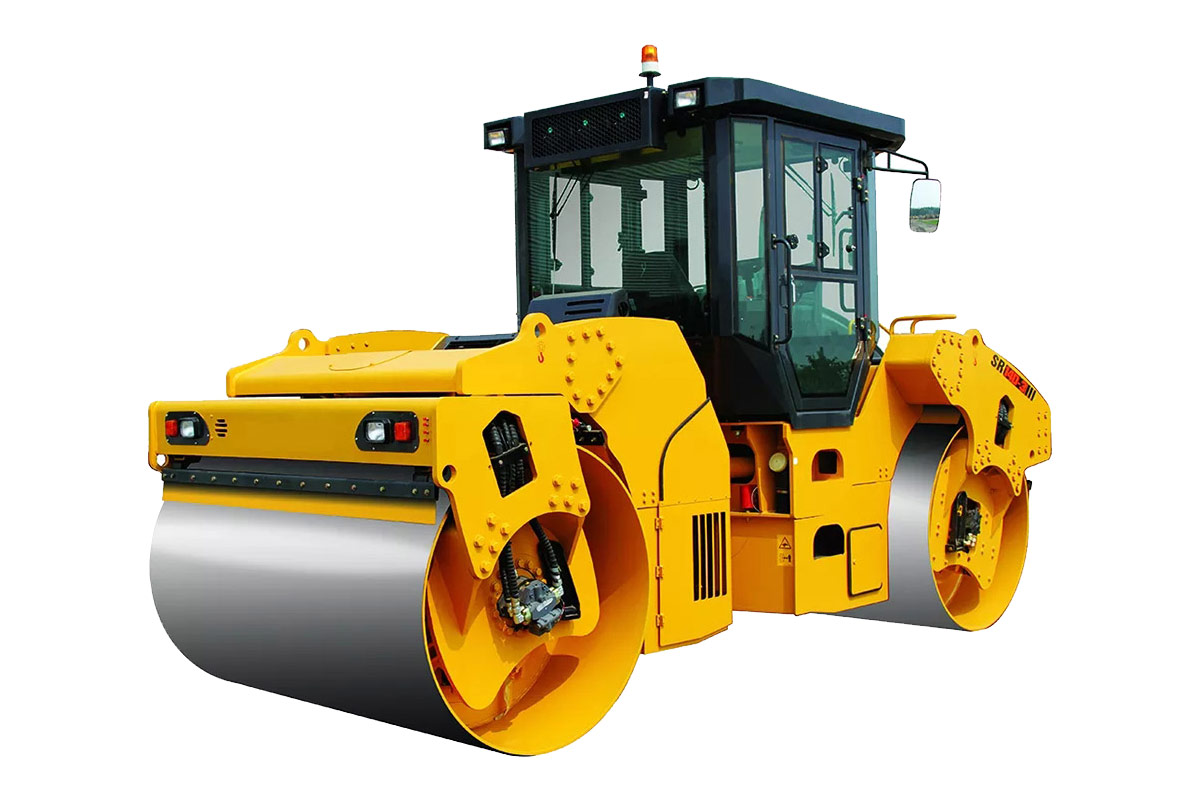

Parameter name | HW14D-3 |
Operating weight (Kg) | 14000 |
Exciting force (KN) | 170/112 |
Vibration frequency (Hz) | 51/67 |
Nominal amplitude (mm) | 0.8/0.3 |
Gradeability (%) | 30 |
Engine model | QSB4.5 |
Rated power/rated speed (kW/rpm) | 119/2200 |
Overall dimensions of machine (mm) | 5208*2297*3060 |
Forward speed (km/h) | F1:0-6,F2:0-8,F3:0-12 |
Reversing speed (km/h) | R1:0-6,R2:0-8,R3:0-12 |
Fuel tank (L) | 200 |
Compacting width (mm) | 2130 |
