Hengwang construction machinery products mainly include excavator, road roller, crawler dumper, forklift, cranes, self-loading concrete mixer trucks and backhoe loaders, etc., which are widely used in various construction sites.
Operating cost
● The proprietary match technology can achieve high operating efficiency and reasonable fuel economy.
● The configuration of brand core parts achieves high quality and reliability and reduces the malfunction downtime.
Working performance
● The high-strength three-point swing M frame for front wheels guarantees the uniform compacting on rugged ground.
● The special tires for construction machinery feature good wear resistance and long life.
● The hydraulic drive and the stepless speed regulation achieve comfortable and efficient operations, avoid the material accumulation due to sudden acceleration and deceleration, and guarantee high compacting evenness.
● The four-stage brake features short braking distance and high safety and meets the needs under diversified working conditions.

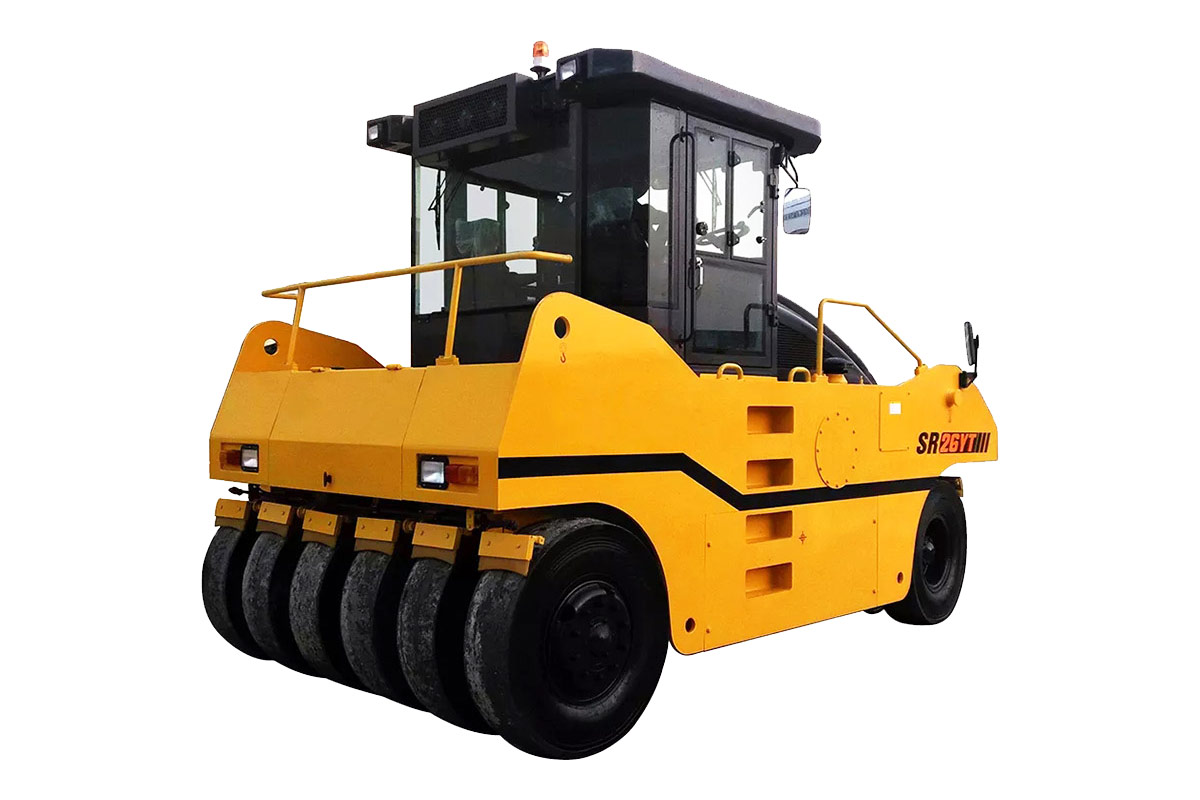

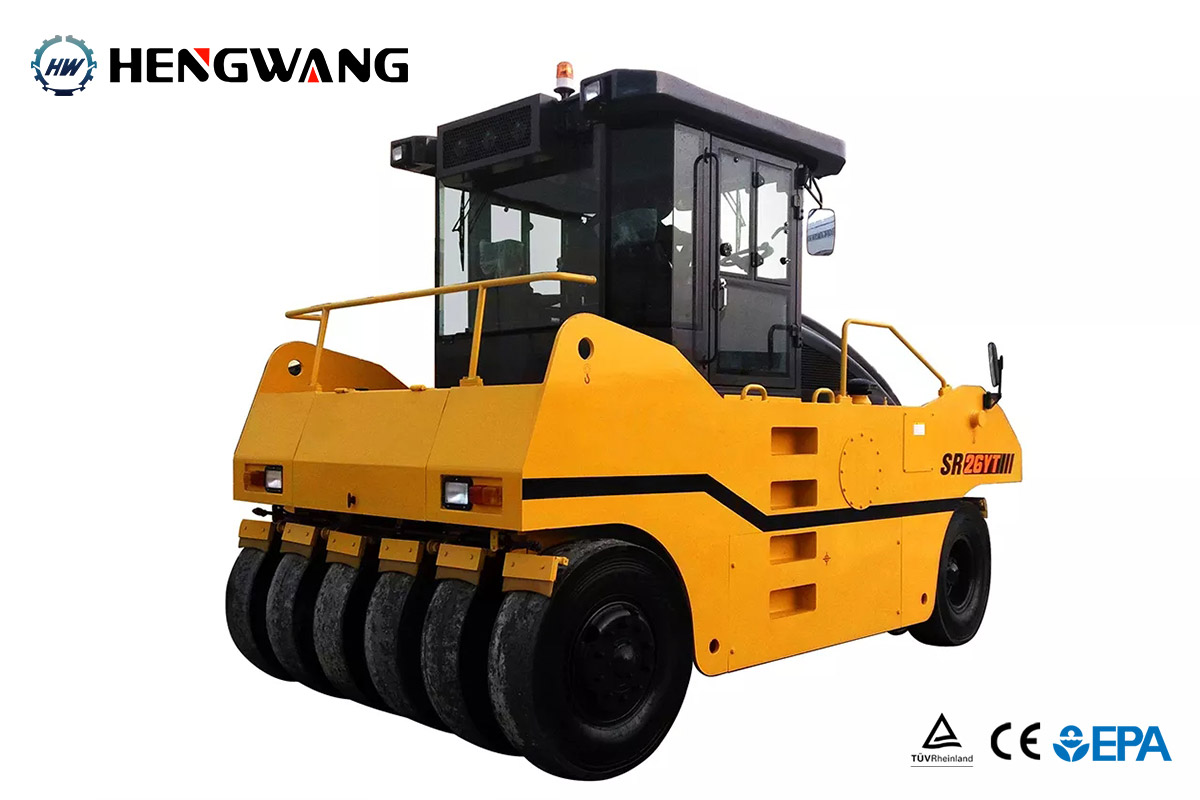

Parameter name | HW26YT |
Operating weight (Kg) | 26000 |
Ground pressure (KPa) | 200-420 |
Gradeability (%) | 20 |
Engine model | SC7H |
Rated power/rated speed (kW/rpm) | 118/2000 |
Overall dimensions of machine (mm) | 5060*2892*3338 |
Forward speed (km/h) | F1:0-7,F2:0-14 |
Reversing speed (km/h) | R1:0-7,R2:0-14 |
Wheelbase (mm) | 3840 |
Fuel tank (L) | 180 |
Compacting width (mm) | 2750 |
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
